Equipments & Machinery Details

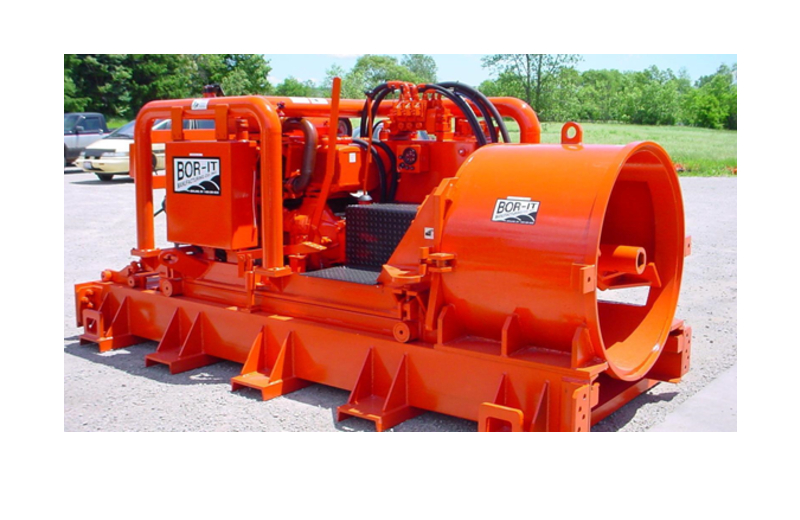

Auger Boring Machine - BOT-IT-300 TO 900MM Dia
BOR-IT MACHINES
BOR-IT offers you the highest quality horizontal earthboring machines on the market today. Compare our specifications with any other unit you have used or are considering, and you will find the features offered by BOR-IT surpass the competition hands down. Fast, easy-handling, efficient, powerful and a unique split design; all are trademarks of BOR-IT quality.
Why choose Bor-IT Auger Boring Machines:
- 1.Specialize in Horizontal Auger Boring - not the entire Underground Industry - which gives us the ability to focus on what works best for you.
- 2.Privately held company which entitles you to take your ideas and suggestions straight to the top.
- 3.Flexible and fast acting to fulfill you orders.
- 4.Over 30 years manufacturing Bor-IT machines and accessories - most of which are still out working in the field.
- 5.Over 45 years of boring experience and always available to help.
For the many utility and construction applications requiring cased bores 12" through 36" in diameter, the BOR-IT Model 36 “Workhorse” Horizontal Earth Boring Machine delivers power to spare, plus a whole lot more. The air cooled Deutz diesel provides all the torque required for those tough jobs along with Deutz’s well know high reliability, low maintenance, and global service network.
Our hydraulic system utilizes a load sensing, pressure compensated, piston pump. This along with our high pressure cylinders makes for a system that maximizes thrust for those long pushes where you may encounter rock, cobble, clay or other nasty soil conditions.
The Bor-IT split design allows for easier lifts, using the provided lift bar, when the power unit must be removed for overnight security.
Model 36 Specs |
Engline |
Deutz Diesel |
Rating |
62 HP |
Engine Torque |
140 ft-lbs @1700 |
Max Rated Speed |
2,600 RPM |
Transmission |
T-18 4 Speed |
Gear |
Ratio |
1st gear |
6.32:1 |
2nd gear |
3.09:1 |
3rd gear |
1.69:1 |
4th gear |
1.0:1 |
Rev |
7.44:1 |
Gear Box |
Fairfield S10B |
Final Reduction |
44:1 |
Torque Requirements |
Gear |
Ratio Max. |
Speed |
1st gear |
38,931 ft-lbs |
9.3 RPM |
2nd gear |
19,034 ft-lbs |
19 RPM |
3rd gear |
10,410 ft-lbs |
35 RPM |
4th gear |
6,160 ft-lbs |
59 RPM |
Rev |
45,830 ft-lbs |
8 RPM |
Hydraulic System |
Thrust (normal) |
255,000 lbs |
Thrust (intermittent) |
300,000 lbs |
Hydraulic Pump |
Axial Piston Pump - Load Sensing Pressure Comp |
Pump Pressure (continuous) |
4,495 psi |
Pump Pressure (maximum) |
5,800 psi |
Thrust Cylinders |
(Three) 6” Bore x 36” Stroke |
Machine Data |
Working Range |
12” to 36” Casing Diameter |
Hex Drive |
3” hex |
Push Bar |
Hydraulic |
Dimensions |
Length |
100” |
Width |
44” |
Height |
58” |
Centerline |
25” |
Master Track Length |
125” |
Extension Track Length |
120” |
Weight |
Machine |
4,325 lbs |
Cylinder Package |
2,640 lbs |
Master Pusher |
980 lbs |
Master Track |
1,540 lbs |
Extension Track (each) |
1,130 lbs |

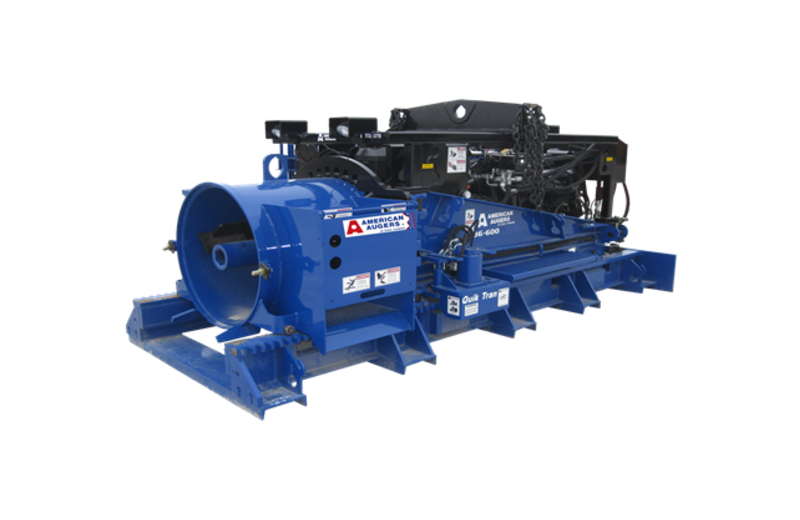

Auger Boring Machine - 200mm Dia- 600mm Dia
SPECIFICATIONS
- • Engine Tier 3 Deutz D914LO6 Tier 3 Diesel
- • Engine Tier 4 Final CAT C4.4 Tier 4f Diesel
- • Rating Tier 3 116 HP (86.5 kW)
- • Rating Tier 4 Final 137 HP (102.2 kW)
- • Maximum Engine Speed Tier 3 2300 RPM
- • Maximum Engine Speed Tier 4 Final 2200 RPM
- • Engine Torque Tier 3228 ft-lbs. (309.1 Nm) @ 2300 RPM
- • Engine Torque Tier 4 Final 326 ft-lbs. (442 Nm) @ 2200 RPM
- • Engine Torque 2 Tier 3276 ft-lbs. (374.2 Nm) @ 1600 RPM
- • Engine Torque 2 Tier 4 Final 391 ft-lbs. (530 Nm) @ 1400 RPM
- • Fuel Capacity Tier 318.5 U.S. Gallons (70 L)
- • Fuel Capacity Tier 4 Final 22 U.S. Gallons (83.3 L)
- • Hydraulic Capacity Tier 322.6 U.S. Gallons (86 L)
- • Hydraulic Capacity Tier 4 Final 24 U.S. Gallons (91 L)
- • Type Tier 3 Eaton FS-5205A, 5-speed
- • Type Tier 4 Final Eaton FS-5205A, 5-speed
- • Clutch Tier 3 Spring applied with 14. in. (356 mm) diameter single disk / hydraulically-assisted clutch actuator
- • Clutch Tier 4 Final Spring applied with 14. in. (356 mm) diameter single disk / hydraulically-assisted clutch actuator
- • Ratio Tier 3 54.2:1
- • Ratio Tier 4 Final 54.2:1
- • Maximum Thrust 600,000 lbs. (272 Tonnes)
- • Hydraulic Thrust Cylinder(2) 9 in. Bore x 35 in. Stroke (229 mm x 889 mm)
- • Diameter 36 in. (914 mm)
- • Working Range 12 in. – 42 in. (305 – 1,067 mm) Casing Diameter
- • Hex Drive 4 in. (102 mm)
- • The Quik Split frame design allows the machine to be separated into sections to accommodate lighter and faster lifts into and out of the bore pit and helps the operator facilitate more accurate and safer machine positioning.
- • Quik Tran is the fast return system, made available exclusively from American Augers. It provides up to 10,000 lbs. (4,536 kg) of push/pull at high speed, and there will be no dogging or winching during retract, as the Quik Tran system engages directly to the machine track. Quik Tran’s benefit will be easier machine operation in challenging work climates or conditions.
- • With a Safety-First commitment, all American Augers horizontal earth boring machines are equipped with a gravity activated-manual spoil door, which deflects thrown debris from the spoil chamber.
- • Length 12 ft. 6 in. (3.81 m)
- • Width 5 ft. 7 in. (1.69 m)
- • Height Tier 35 ft. 9 in. (1.75 m)
- • Height Tier 4F 6 ft. 8 in. (2.03 m)
- • Master Track Length 13 ft. (3.96 m) w/1 in. (25 mm) back plate
- • Master Track Width 6 ft. 3 in. (1.92 m) with backplate
- • Centerline 29.27 in. (744 mm)
- • Extension Track Length 10 ft. (3 m)
- • Extension Track Width 5 ft. 3 in. (1.6 m)
- • Base Unit (Split Weight) 5,100 lbs. (2,313 kg)
- • Power Pack (Split Weight) Tier 36,800 lbs. (3,084 kg)
- • Power Pack (Split Weight) Tier 4F 7,240 lbs. (3,284 kg)
- • Master Pusher 1,100 lbs. (499 kg)
- • Master Track 3,500 lbs. (1,587 kg)
- • Lifting Sling 300 lbs. (136 kg)
- • Total Weight Tier 316,800 lbs. (7,620 kg)
- • Total Weight Tier 417,240 lbs. (7,820 kg)
- • Extension Track 2,800 lbs. (1,270 kg) each
- • Master Saddle 250 lbs. (114 kg)
- • Work Lights Tier 3(3) 12 Volt
- • Work Lights Tier 4(2) 12 Volt
- • Extension Track (2)
- • Master Saddle(1) 36 in. (914 mm) compatible

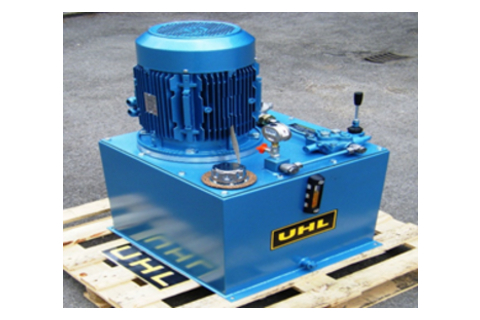

Hydraulic Power pack

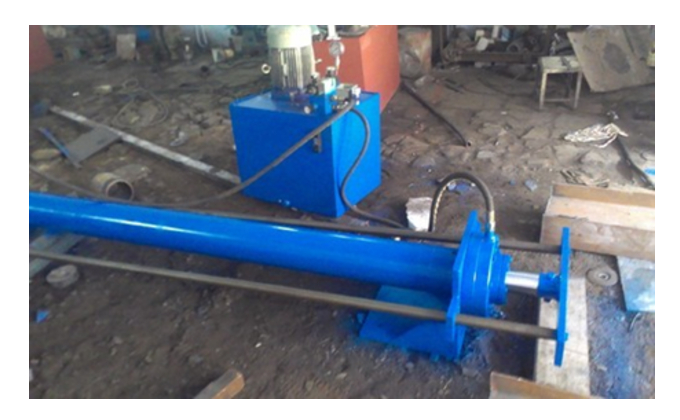

Pushing Jack

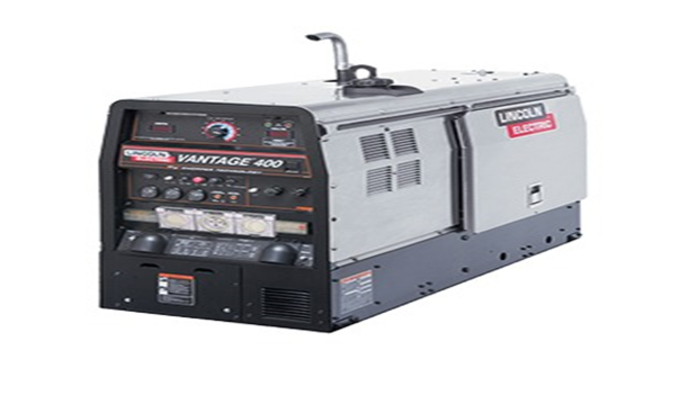

Welding Machine

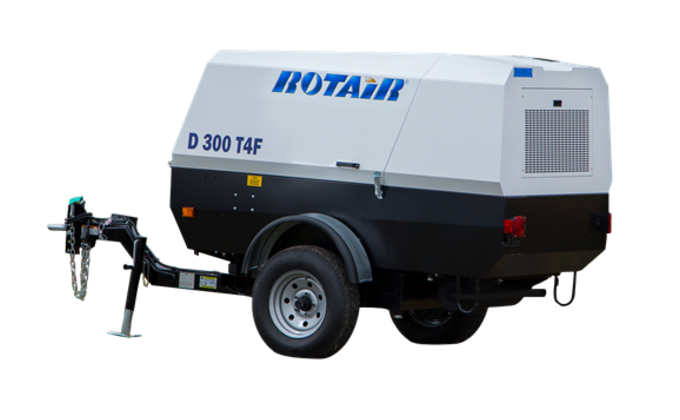

Air Compressor

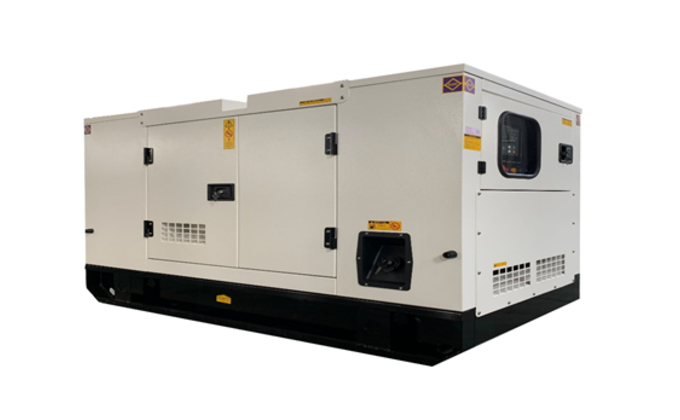

Generator Set
Tools and Equipment’s
- • Air Hammer
- • Electric Hammer
- • Gas Cutting Set
- • Hand Grinding machines.
